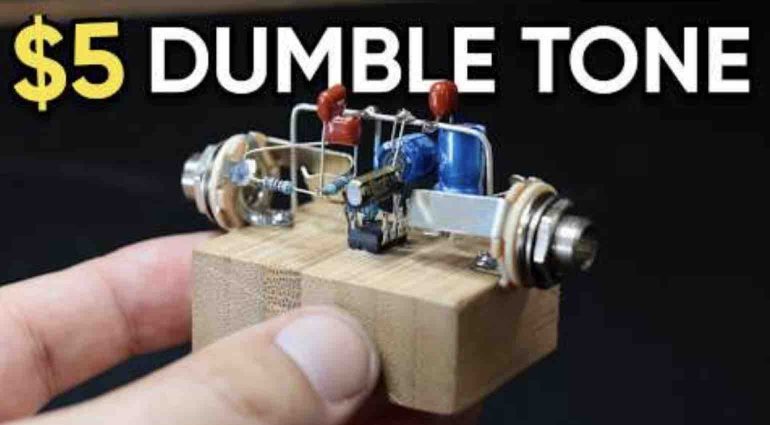

Have you ever wondered if a homemade, quarter-watt amplifier built on a small block of wood could compete with a legendary, high-end Dumble clone? Surprisingly, it absolutely can.
For just a few dollars, you can build a massive-sounding DIY amplifier that is safe, simple, and capable of pushing a 4×12 cab. Whether you’re a seasoned tinkerer or entirely new to building guitar gear, this low-voltage project is the perfect gateway into the addictive world of DIY electronics.
Here is everything you need to know to build your own $5 Dumble-style amp!
Update: 5 Powerful Mods to Supercharge the $5 Dumbleton Amp
Waylon McPherson Guitar has added some great updates to the $5 Dumbleton Amp design.
Following the massive popularity of the original $5 Dumbleton—a tiny, quarter-watt amplifier based on the LM386 chip—many builders have been asking how far this little circuit can be pushed. It turns out that with just a few component changes, you can drastically reshape its sound and functionality.
Here are five simple but incredibly powerful modifications you can add to your Dumbleton amp:
-
1. Add a Gain Control
The LM386 chip allows you to adjust its internal gain using pins 1 and 8. By removing the stock 1k resistor between these pins and installing a 1k linear taper pot, you unlock a sweepable gain control. This simple mod lets you dial in everything from a light “edge-of-breakup” tone to heavy, saturated high gain.
-
2. Install a Bright Switch
To add some top-end sparkle, you can wire a bright switch across pins 1 and 8 (or directly across the new gain pot). Using a three-position switch with a 100nF and a 220nF capacitor, you can toggle between the stock sound and two levels of boosted brightness.
-
3. Bass Conversion Mod
Want to use the Dumbleton for bass guitar? You simply need to adjust the capacitors to handle the lower frequencies. By doubling the input capacitor (from 22nF to 47nF) and the filter capacitor (from 47nF to 100nF), you maintain the proper filter frequency. Because the amp has low headroom, bass notes take on a uniquely gritty, cool character.
-
4. Sweepable Voicing Control
This mod completely transforms the amp by letting you shape its mid-range character. By replacing the two 12k resistors in the original design with a dual-gang potentiometer (wired in series with 1k resistors), you create an adjustable T-filter network. This sweepable voicing control allows you to fine-tune the amp’s response or even morph it to mimic entirely different amplifier voicings.
-
5. Super Hot Preamp Conversion
If you’d rather use the Dumbleton on your pedalboard than plug it into a speaker cab, this mod turns the circuit into a blistering preamp/booster. By adding a 10k audio taper pot after the output capacitor, it stops acting as a standalone amp and becomes a pedal with insane output volume—perfect for absolutely hammering the front end of a larger tube amp.
1/4 Watt DIY Guide
If you’re a guitar player, the word “Dumble” probably conjures up two things: legendary, touch-responsive tone, and a price tag that requires a second mortgage. But what if you could capture a slice of that boutique magic for less than the cost of a new set of strings?
In a mind-bending experiment, the YouTube channel Waylon McPherson Guitar set out to do exactly that. He pitted a high-end Dumble clone against a homemade, 1/4-watt amplifier built on a scrap block of wood—and the results speak for themselves. That $5 DIY circuit sounds absolutely massive.
Whether you’re a seasoned soldering veteran or you’ve never looked at a schematic in your life, Waylon’s “Dumbleton” is the perfect weekend project. In this guide, we are breaking down his incredible video step-by-step so you can easily build your own low-voltage tone monster.
Why Build a Low-Voltage LM386 Amplifier?
The heart of this build is an LM386 chip. This classic, low-voltage component is the basis for countless miniature amplifier circuits.
-
It’s incredibly safe: Because it runs on 9V to 18V power, you don’t have to worry about the lethal voltages associated with tube amp building.
-
It’s highly portable: You can easily run this amp off a standard 9V battery.
-
Surprisingly loud: Despite being rated at a quarter watt, it can get impressively loud and could even be used at a gig through a miked-up 4×12 cabinet.
Parts You Will Need
To put together this Dumble-style tone machine, you will need a few inexpensive components:
-
LM386-4 Chip: Be sure to get the “-4” version, as it handles up to 18V for extra clean headroom.
-
Capacitors: 22nF, 47nF, 100nF, 47uF, and two 220uF capacitors.
-
Resistors: 10 ohm, 1k, and two 12k resistors.
-
Hardware: 1/4″ input and output jacks, a DC power jack, and an enclosure. (While it looks cool built into a slab of wood, putting it in a shielded enclosure is highly recommended for touring to reduce noise.
Step-by-Step Circuit Breakdown
Before soldering, familiarize yourself with the LM386-4 chip. The small dot on the chip represents Pin 1, and the numbers run counter-clockwise around the chip down to Pin 8.
Here is how the signal flows:
-
The Input Stage: The hot lug from the input jack routes through a 22nF capacitor into Pin 2. On either side of this capacitor, a 12k resistor is connected, joined together, and then routed to ground via a 47nF capacitor.
-
Grounding the Chip: Connect Pins 3 and 4 directly to your ground rail.
-
Setting the Gain: Place a 1k resistor between Pins 1 and 8. This bumps up the gain. (You can also short this for maximum gain, though it can get overly compressed.
-
Power Filtering: Pin 6 acts as the power rail. Connect a 220uF capacitor from Pin 6 to ground to filter the incoming DC power and keep it smooth. From Pin 7, add a 47uF capacitor to ground.
-
The Output Stage: Pin 5 is your output pin. Run a 220uF capacitor from Pin 5 to the hot lug of your output jack.
-
Controlling Oscillation: To stop nasty clipping or high-frequency oscillation, run a 10-ohm resistor and a 100nF capacitor in series from Pin 5 to ground.
-
Power: Connect the positive lug of your DC jack to Pin 6, and the negative lug to the common ground rail.
The “Safe Power-Up” Method
Whenever firing up a new DIY build, use this simple method to ensure you don’t fry your components:
-
Plug your power supply into the wall and briefly turn it on to let the capacitors charge, then turn the wall switch off.
-
Plug the power into your new amp and strum your guitar.
-
If you hear a brief, fading sound of your guitar through the speaker, the circuit is working! If you don’t hear anything, stop and check for shorts before applying constant power.
Shaping Your Tone: 9V vs 18V & Pedal Compatibility
Because you used an LM386-4, you have a choice of voltages! Running the amp at 9V gives you a slightly more compressed and dirtier tone. Bumping the power up to 18V provides a tighter low-end response and noticeably more headroom.
Unlike many micro-amps, this circuit responds beautifully to overdrive pedals. However, there is one crucial secret to unlocking its full potential…
Crucial Tip: Always Use a Buffer!
To get the best possible sound out of this amplifier, you must use a buffered bypass pedal (like a Boss pedal or TC Electronic Polytune) in front of it. This amp circuit has a very low input impedance, and a buffer restores your guitar’s high end and ensures the amp reacts correctly to your instrument.
FAQ
Q: Can I really run this amp on a 9V battery?
A: Yes! Because it is a low-voltage circuit, it can run perfectly off a standard 9V battery, making it highly portable.
Q: Do I need to build it inside a metal enclosure?
A: You don’t have to—you can build it on a piece of wood for a cool aesthetic—but placing it inside a shielded metal enclosure is highly recommended to protect the electronics and reduce background noise.
Q: Why does my amp sound muffled or dark when I plug directly into it?
A: The circuit has a very low input impedance. You need to place a buffered bypass guitar pedal in front of the amp’s input to correct the impedance and restore your guitar’s natural tone.
Q: How do I get more clean headroom out of the amp?
A: Ensure you are using the LM386-4 version of the chip, which can safely handle 18 volts. Running an 18V power supply instead of 9V will give you a tighter low end and more clean headroom.
Conclusion: Is the $5 Dumble-Style Amp Worth Building?
Absolutely. The beauty of this 1/4-watt LM386 amp build isn’t just that it mimics the touch-responsive nature of a Dumble clone; it’s that it demystifies the entire amplifier building process. For $5, you get a completely safe, low-voltage entry point into DIY guitar electronics that you can run off a standard 9V battery or an 18V pedal supply.
Huge thanks to Waylon McPherson Guitar for designing and sharing such an accessible project. If you’ve been on the fence about building your own gear, let this be your sign to start.
More Information
#$5 Dumble-Style Amp
