For decades, guitarists have chased a specific “ghost in the machine”—that elusive, polished warmth found on classic 1960s and 70s tape recordings. SoloDallas has officially released the CompanDrive 65 (CD65), an all-analog compander, overdrive, and boost pedal designed to capture the unintended harmonic brilliance of vintage studio gear.
While most pedals aim to replicate an amplifier, the CD65 replicates the signal chain. Specifically, it recreates the companding (compressing/expanding) circuit found in the legendary Dolby noise-reduction units, which became a staple of professional studios starting in 1965.
The Secret Sauce: 4 Stages of Analog Bliss
The CompanDrive 65 isn’t just a simple overdrive; it’s a carefully calibrated recreation of a vintage console’s path. The signal flows through four distinct stages to achieve its “mix-ready” tone:
-
Vintage Console Gain Circuit (VCGC): Driven by the iconic LM308 op-amp, this stage provides high-fidelity overdrive that feels like pushing a world-class desk into the red.
-
65 Compressor: A soft-knee attack that allows notes to “bloom” rather than squashing them into oblivion.
-
65 Expander: This restores the signal amplitude, removing the “pumping” effect often found in cheaper compressors and keeping the dynamics musical.
-
Vintage OpAmp Boost: Utilizing the LM380 op-amp, this final stage ensures that as you increase the volume, the analog artifacts and clarity remain intact.

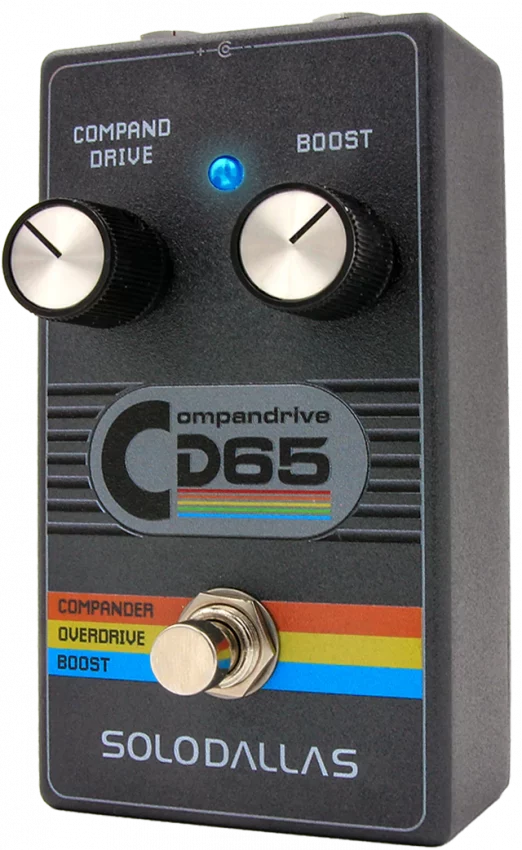

Simplified Control, Professional Build
Despite the complex engineering under the hood, SoloDallas kept the interface user-friendly. The pedal features two primary knobs:
-
Compand/Drive: A simultaneous level control that balances the grit and the squeeze.
-
Boost: Controls the final output level for slamming the front end of your amp.
The unit is hand-built in the USA with commercial-grade PCBs and features top-mounted jacks to save precious real estate on your pedalboard.
Technical Specifications
| Feature | Specification |
| Circuitry | 100% All-Analog |
| Op-Amps | LM308 (Gain) & LM380 (Boost) |
| Bypass | Heavy Duty True Bypass |
| Power Requirements | 12-15vDC (Center Negative, 200 mA) |
| Manufacturing | Made in the USA |
| Street Price | $249 |
Frequently Asked Questions (FAQ)
What exactly is “companding”?
Companding is a portmanteau of compressing and expanding. In the studio, it was used to reduce tape hiss. For guitarists, the byproduct of this process is a unique harmonic richness and a “fast” feel to the notes that traditional overdrives can’t replicate.
Can I run this at 9V?
No. The CD65 requires 12-15vDC to maintain the headroom and voltage swings necessary for the vintage op-amps to perform correctly. Using a standard 9V supply may result in poor performance or a lack of clarity.
Is this a high-gain distortion pedal?
Not exactly. While it can get gritty, it is designed more as a “tone sweetener” and medium-gain drive that makes your guitar sound like a finished record.
The Verdict
The SoloDallas CompanDrive 65 is a specialized tool for the tone purist. It excels at adding that professional “sheen” and weight to your signal that usually requires a rack full of vintage outboard gear. If you’ve ever wondered why your home recordings don’t “pop” like a classic Stones or Zeppelin track, this might be the missing link you’ve been looking for.
Score: 8/10
Refined, harmonically rich, and unapologetically vintage. It’s the pedal for people who didn’t know they needed a noise-reduction circuit to find their ultimate tone.
For more detailed information, full manuals, and current pricing, visit:
#SoloDallas #CompanDrive 65
